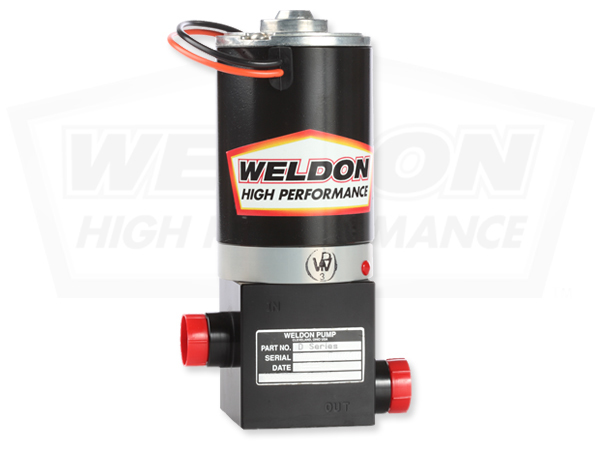

D2015-A
D2015-A
$834.00
In stock
Quantity:
1
Add to Bag
Product Details
Fuel Injected Engines:
1100 HP @ 50 PSI (Naturally Aspirated)
1000 HP at 80 PSI (Boosted)
Carbureted Engines:
1300 HP @ 7 PSI (Naturally Aspirated)
1100 HP @ 30 PSI (Boosted)
Precise, consistent fuel delivery
Self priming
Pump element is 100% tool steel
Body machined from billet aluminum
All billet body pumps are 100% serviceable
Breakaway coupling prevents pump / motor damage in the event of contamination
For carbureted or injected engines
-8 inlet and outlet o-ring ports
5.5 lbs
40 Micron Cellulose Filter Assembly
10 Micron Cellulose Filter Assembly
For fuels other than gasoline, a Stainless filter is recommended
Gasoline
Methanol
Diesel
Ethanol
All racing fuels
Flow Chart - D2015-A
Dimensional Schematic
Typical Carb'd Application Installation Schematic
Typical Fuel Injection Application Installation Schematic
WEQ0810CLN
-8 ORB 10 Micron Cellulose Filter Assembly
WEQ0840CLN
-8 ORB 40 Micron Cellulous Filter Assembly
WEQ0810SSND
-8 ORB 10 Micron Stainless Filter Assembly
WEQ08100SSN
-8 ORB 100 Micron Stainless Filter Assembly
A2046
4 Port Blocking Regulator
A2040
Series, Bypass Regulator
8850-10A
14V Replacement Motor
Filter Elements
